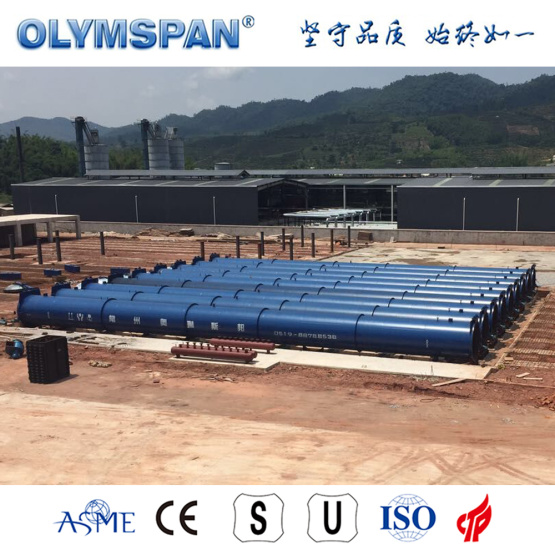

ASME standard ALC block treatment autoclave

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 100 Days

Basic Info


Certification: SGS, CE, ISO, Other

Customized: Customized

Automatic Grade: Automatic

Type: Hydraulic Shock


Additional Info


Packaging: nude packing

Transportation: Ocean,Land

Port: SHANGHAI PORT,NANJING PORT,CHANGZHOU PORT


Product Description

OLYMSPAN AAC AUTOCLAVE


OLYMSPAN Autoclaved aerated concrete (AAC) is a lightweight, precast, foam concrete building material suitable for producing concrete masonry unit (CMU) like blocks. Composed of quartz sand, calcined gypsum, lime, cement, water and aluminum powder, AAC products are cured under heat and pressure in an autoclave. Invented in the mid-1920s, AAC simultaneously provides structure, insulation, and fire- and mold-resistance. Forms include blocks, wall panels, floor and roof panels, cladding (façade) panels and lintels.

AAC products may be used for both interior and exterior construction, and may be painted or coated with a stucco or plaster compound to guard against the elements, or covered with siding materials such as veneer brick or vinyl siding. In addition to their quick and easy installation, ACC materials can be routed, sanded, or cut to size on site using standard power tools with carbon steel cutters.


factory1factory2

Vision: To be a century-old developing company that can give back to society

Mission: Create value for customers and create opportunities for employees

Competition concept: narrow competition is competition, general competition is cooperation, real opponent is self, and effective law is innovation

Business philosophy: integrity and pragmatic

Product design concept: safe and efficient

Values: Integrity/Collaboration/Passion/Responsibility

certificates


AUTOCLAVE DESCRIPTION

6

rawmaterialchecking

Seamless steel pipe for pressure components      20#steel

Thick wall tube for pressure velssel                       20#steel

Special steel plate for pressure vessel                  Q345R

Special forgings for pressure vessel                     16MnⅡ

Steel plate for structural parts such as swing part and saddles


checking2checking3

Materials must be chemically tested to determine its composition before storage.

Dimensional review and thickness inspection before storage.

The hardness and strength of the materials are tested before storage, and only can be used after reaching the standard.

The welding test plate shall be subjected to the pull-up and bending test, and the welding shall be carried out after the evaluation.


raw material2raw material3

Autoclave shell plate use double fixed plate (only one welding line)

All parts of the autoclave are cut by CNC, which ensures smooth transition of the cut surface without burrs.

The autoclave shell is made of a large-scale thick-plate bending machine and can be rolled up to a thickness of 60 mm.

After the longitudinal weld of the shell is completed, the shell shall be rounded by the bending machine, and the ovality is guaranteed to be within 10% of the inner diameter of the shell.

welding1welding2


The longitudinal seam and the ring seam of the shell are all welded by automatic submerged arc welding machine.

Main pressure component welding wire :H10Mn2  flux :HJ431

welding rod:J507

Automatic submerged arc welding machine 16 sets

Manual arc welding machine 58 sets

x-rayx-ray2


The longitudinal seam and the circumferential seam of the shell are  X-ray inspected, which meets the Class III qualification standard.

End dish and forging are X-ray inspected, , which meets the Class II qualification standard.

Forging flange(teeth) does magnetic particle inspection

The detection film is 100% tested by professional certified film reviewer, and can only enter the follow-up session after passing the test.

factory commisioning1factory commisioning2


The autoclave is 100% commissioned before leaving the factory, the door is flexible adjusted, the mark will be printed on the accessories of each door. and the on-site installation only needs to be [checked in".

After the autoclave is completed, a water pressure test of 2.1 MPa must be performed.

The Special Equipment Inspection Institute tests all pressure parts during manufacturing.
